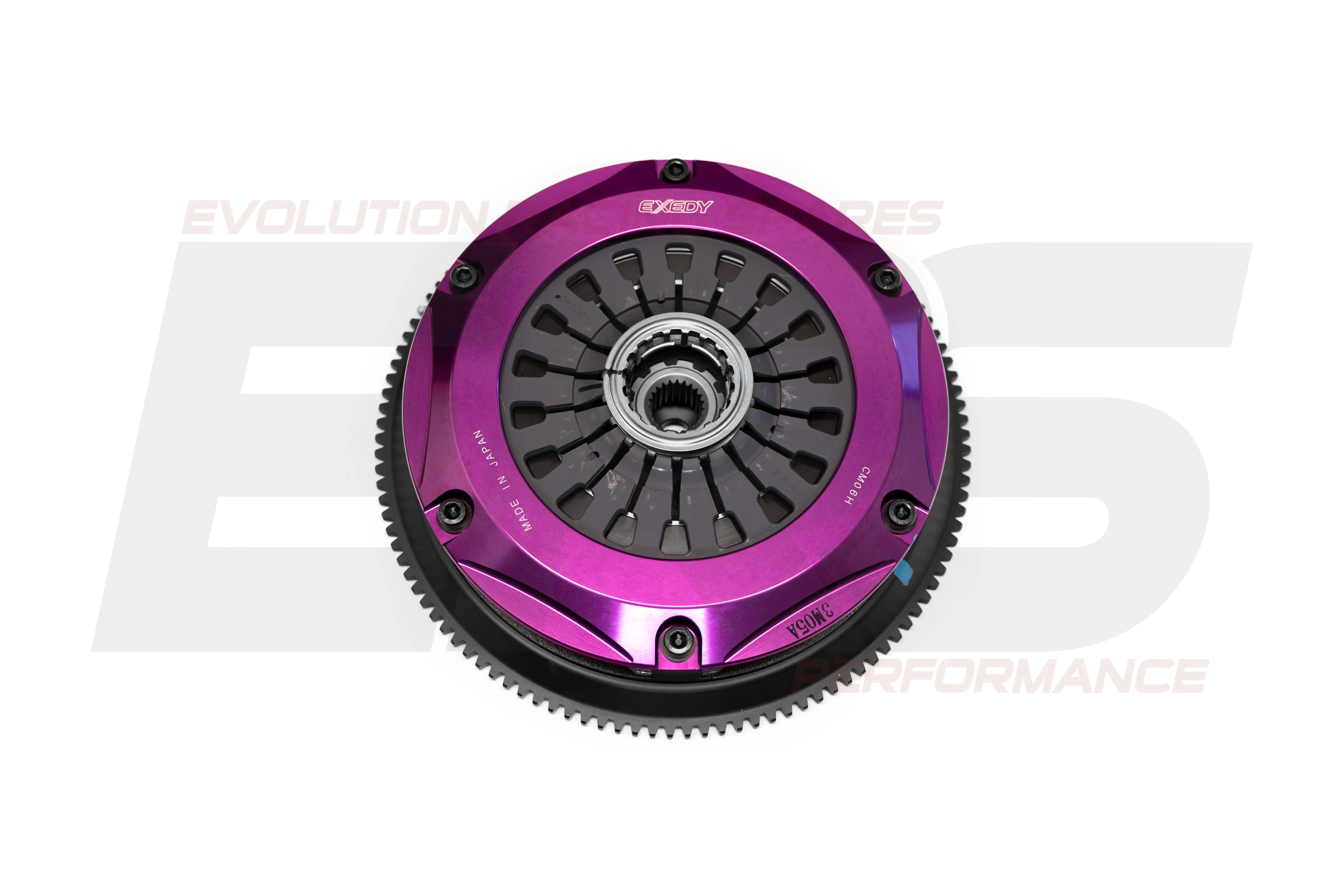

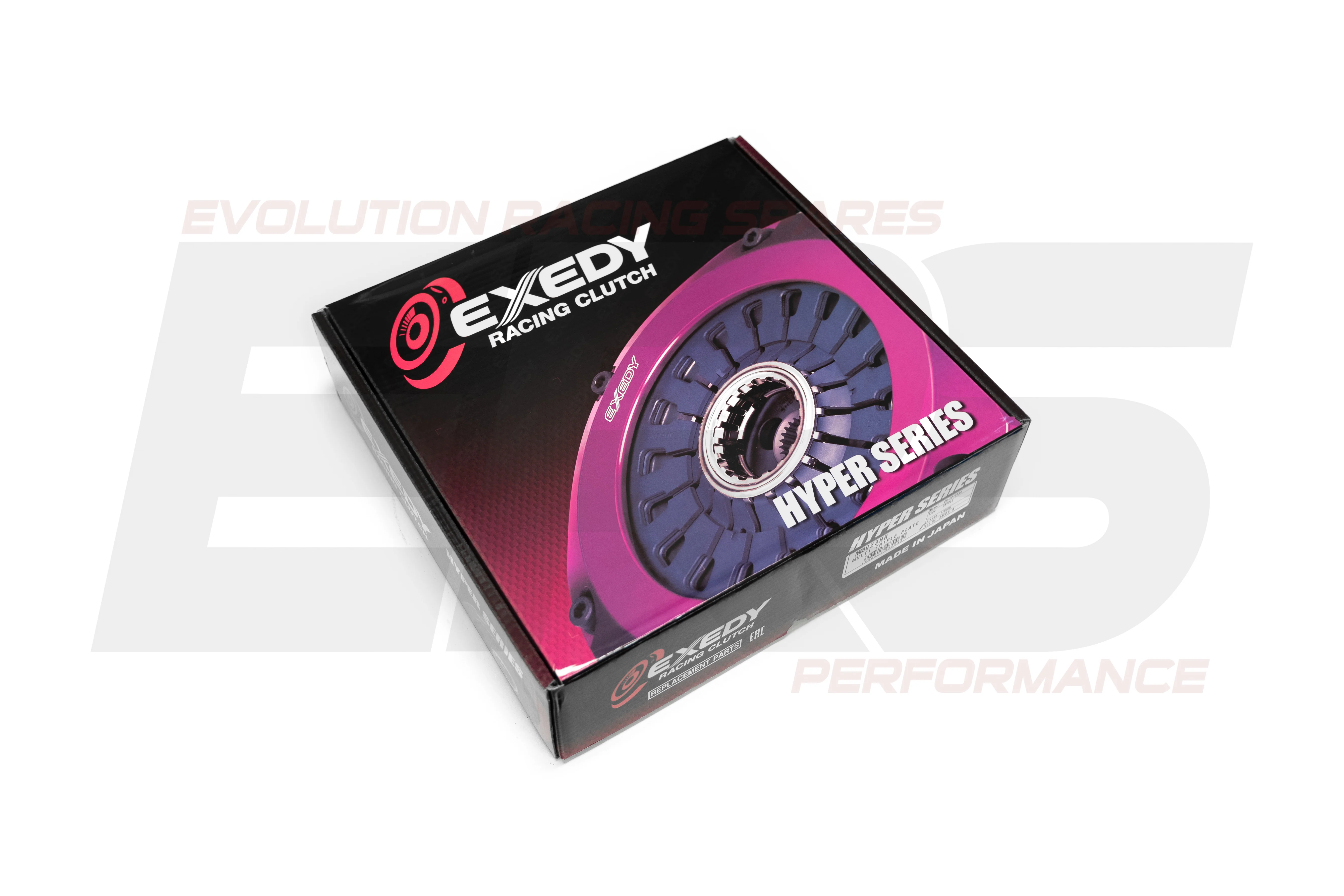

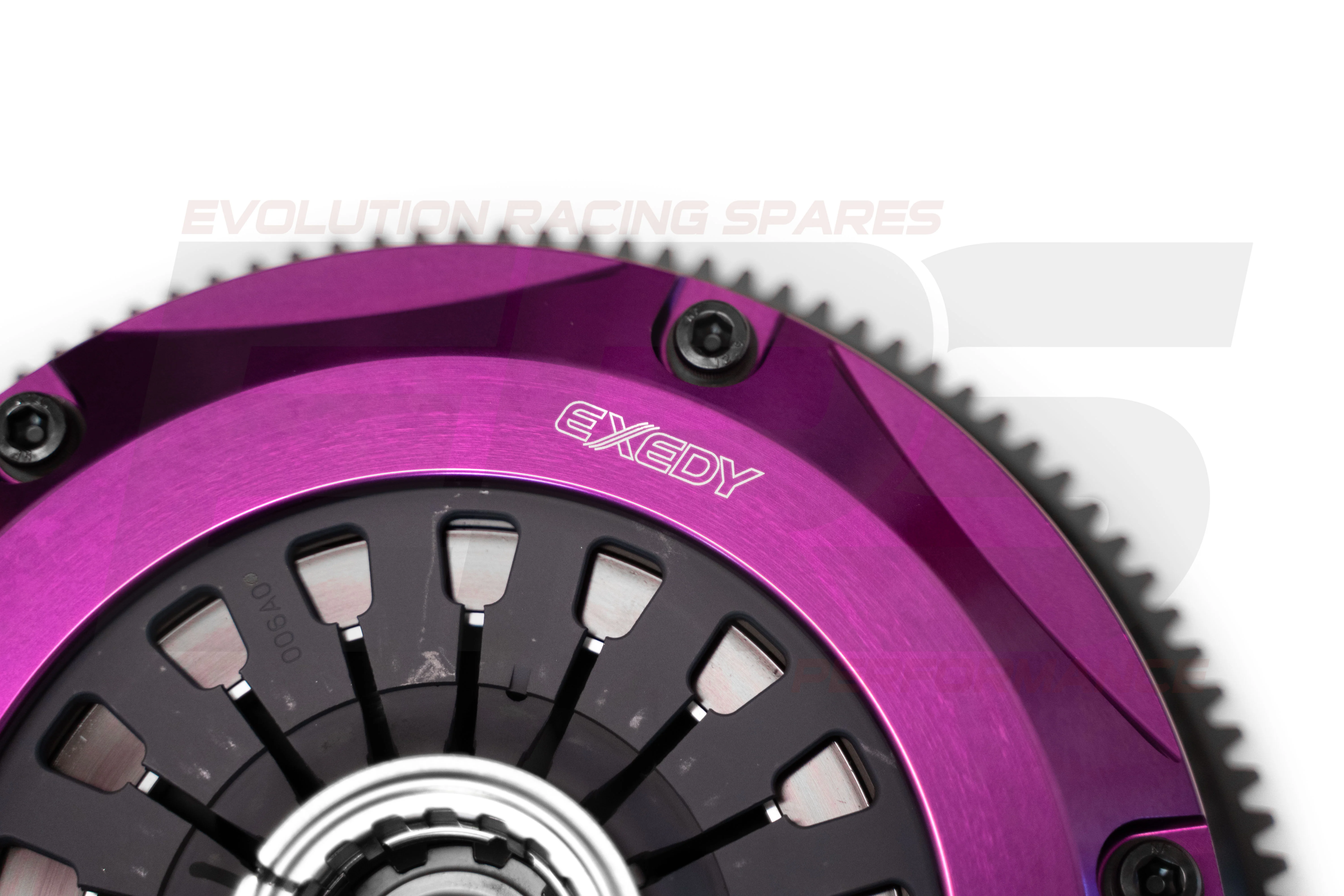

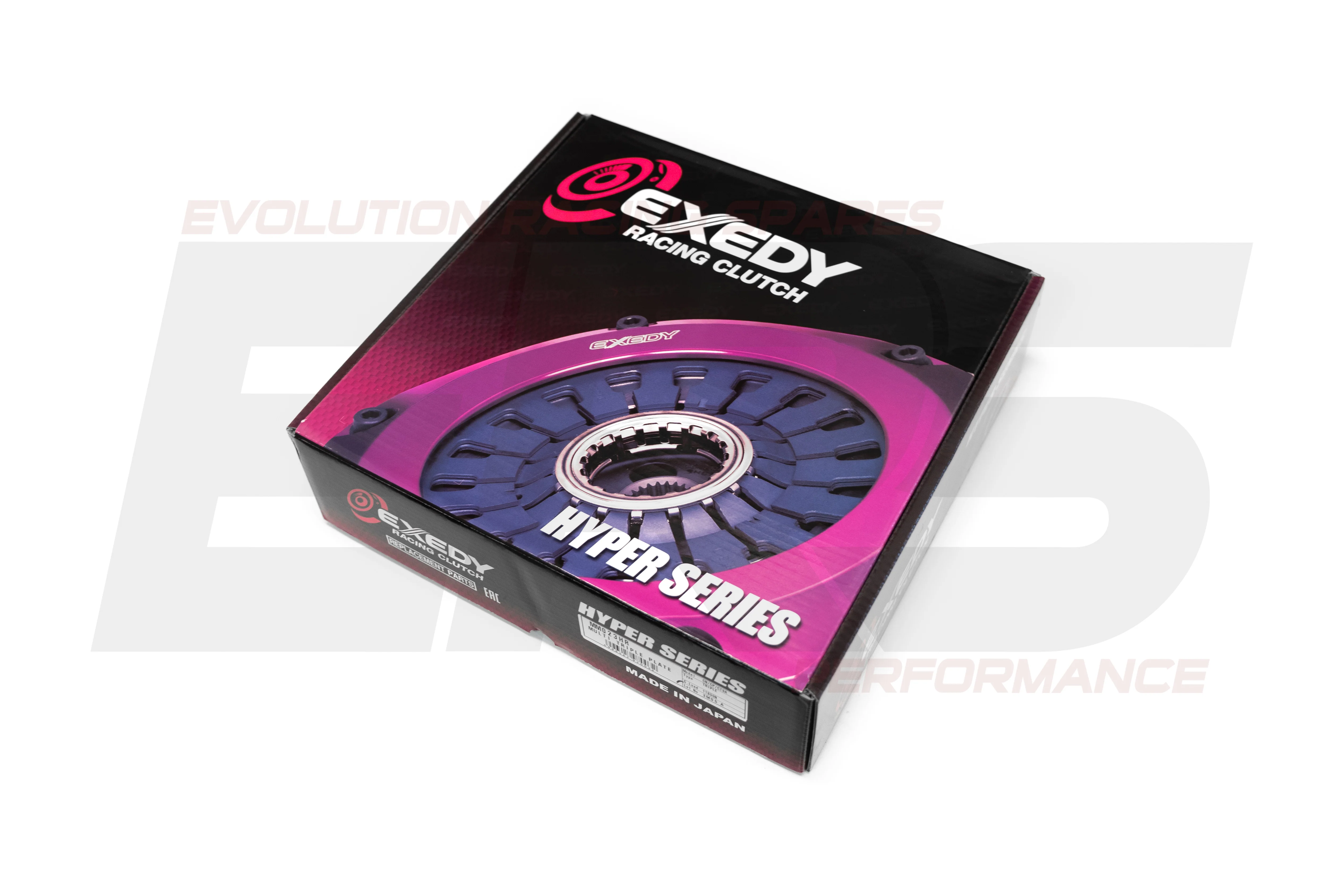

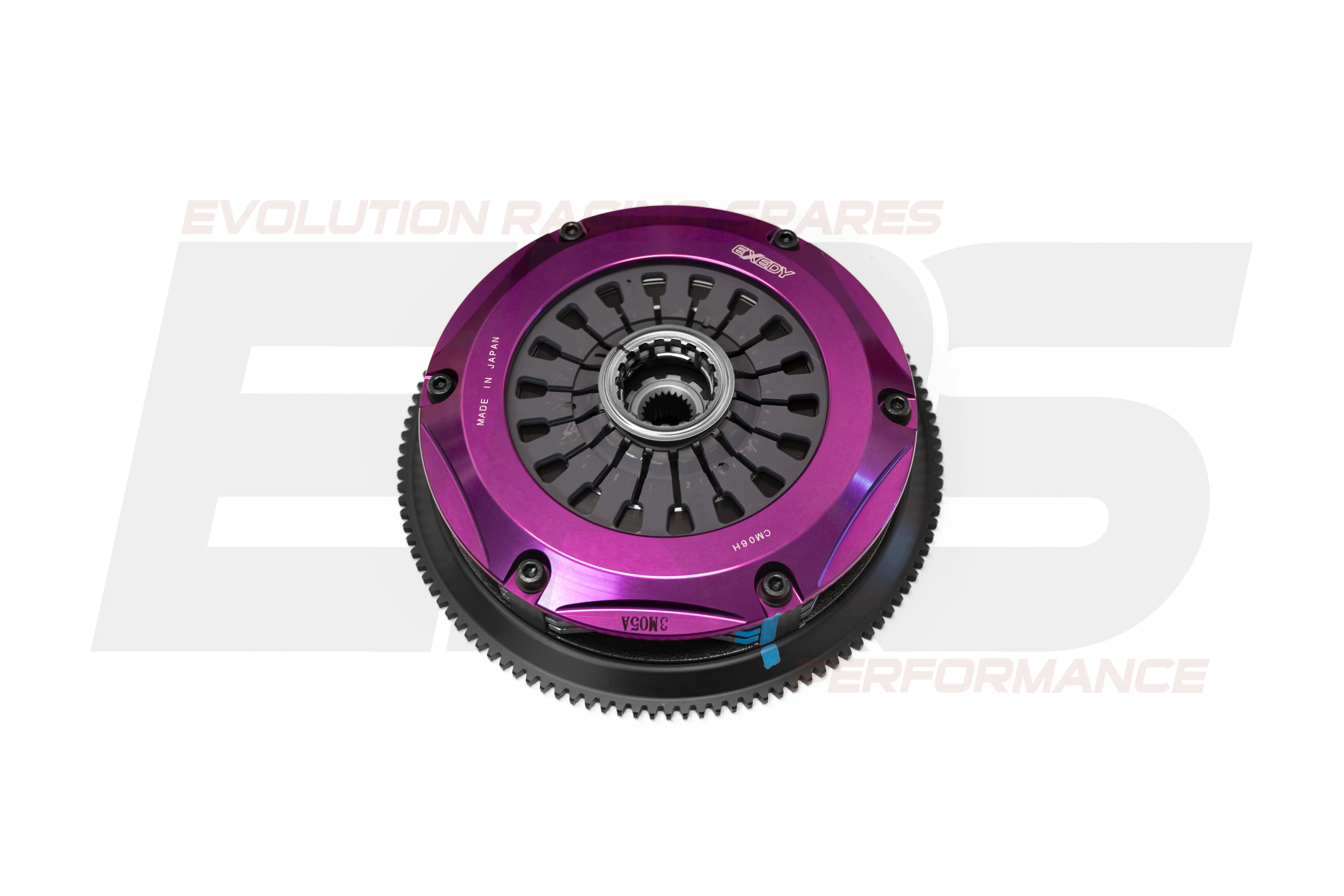

EXEDY Heavy Duty Triple Plate Clutch Kit for Mitsubishi Evo 4-9 (Cerametallic)
The EXEDY Triple Cerametallic Clutch Kit for the Evo 4-9 models is honestly one of our favorite clutches for high power builds that are driven on the street. The EXEDY Triple offers a great clamping force for the track and delivers a light, manageable clutch pedal for the street. We use this clutch in Evo builds from 450 to 900 WHP.
Vehicle Fitment - FITS BOTH 5 AND 6 SPEED:
• 2001-2006 CT9A Evolution 7/8/9
• 1996-2001 CP9A CN9A Evo 4/5/6
Why do I need a triple plate clutch?
Multi plate clutch kits (Twin & Triple Disc) simply put have more than one clutch disc. The stock clutch comes with one disc and by having two or three discs, you essentially double or triple the surface area to be clamped. If you are like most Evo owners, you have probably doubled or tripled your power... so you need to compensate with a more powerful clutch. There will also be intermediate plates between the discs and especially with the Triple kits, when you push in the clutch pedal, you'll hear those plates rattling around free. That's totally normal and fun to mess with your friends.
Features:
• Street, Drag, Road and Rally Race
• Purple Anodized Forged Aluminum Clutch Cover
• Pull-Type Design
• Cerametallic Discs
• Rated for 923 TQ

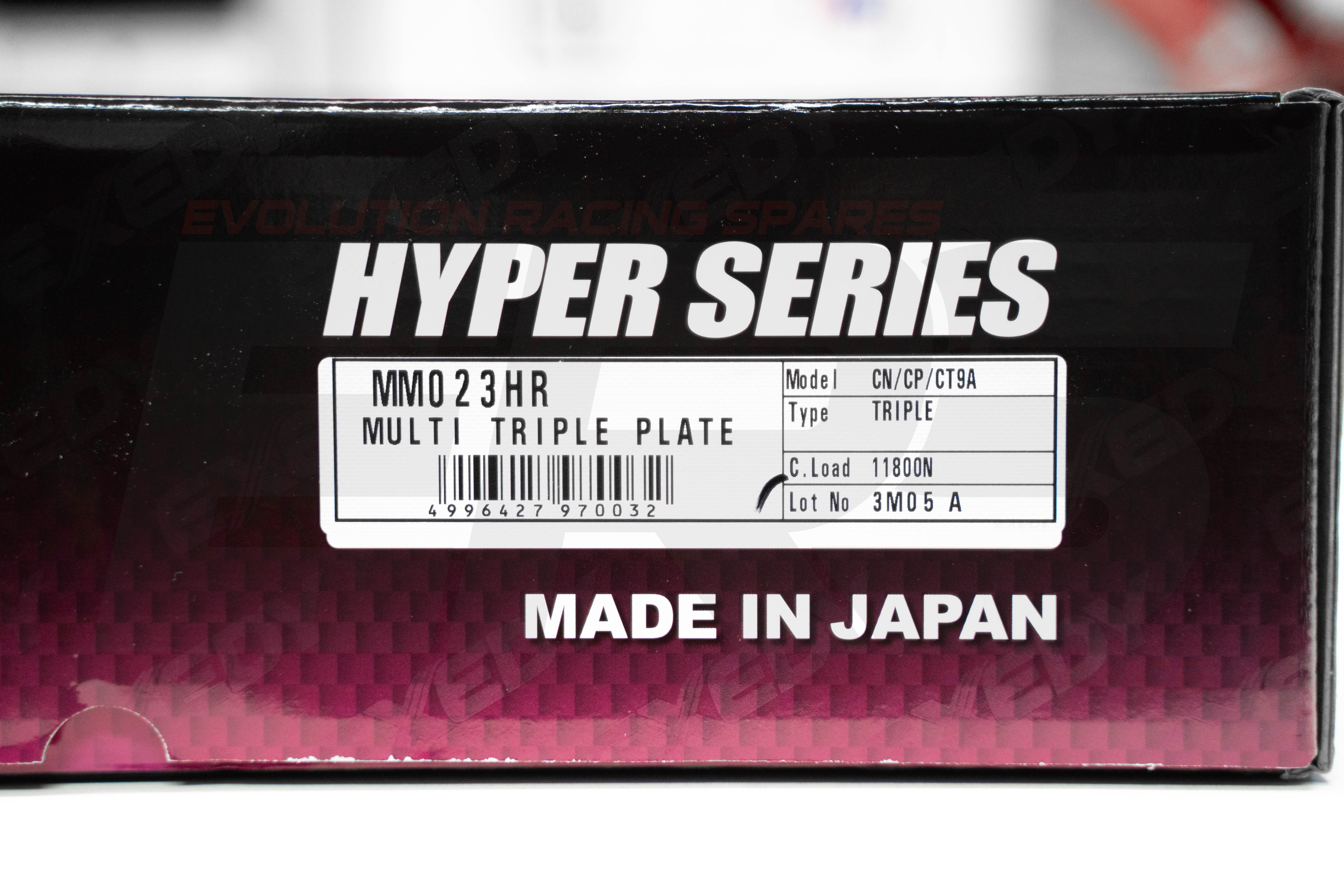

MM023HR HD "Heavy Duty"
Triple Cerametallic Evo 4-9 Clutch Kit
| Notes |
Hyper Triple Cerametallic Clutch Rigid Disc Pull Type Cover |
| Clamp Load | 2652 |
| Disc Diameter (Inches) | 7.9 |
| Disc Diameter (Millimeters) | 200 |
| Kit Contents | CM06H, PP02, IM02, DL03R, DL03R, DL03R, CH16, FR01, FM12, BS05, BS01, PR01 and Alignment Tool |
| Spline Count | 23 |
| Spline Size (Inches) | 1-1/16 |
| Spline Size (Millimeters) | 26.2 |
| Torque Capacity (ft/lbs.) | 923 |
Install Notes:
• Flywheel to Crank Bolt (ft-lb): 99
• Pressure Plate Assembly to Flywheel (ft-lb): 23
