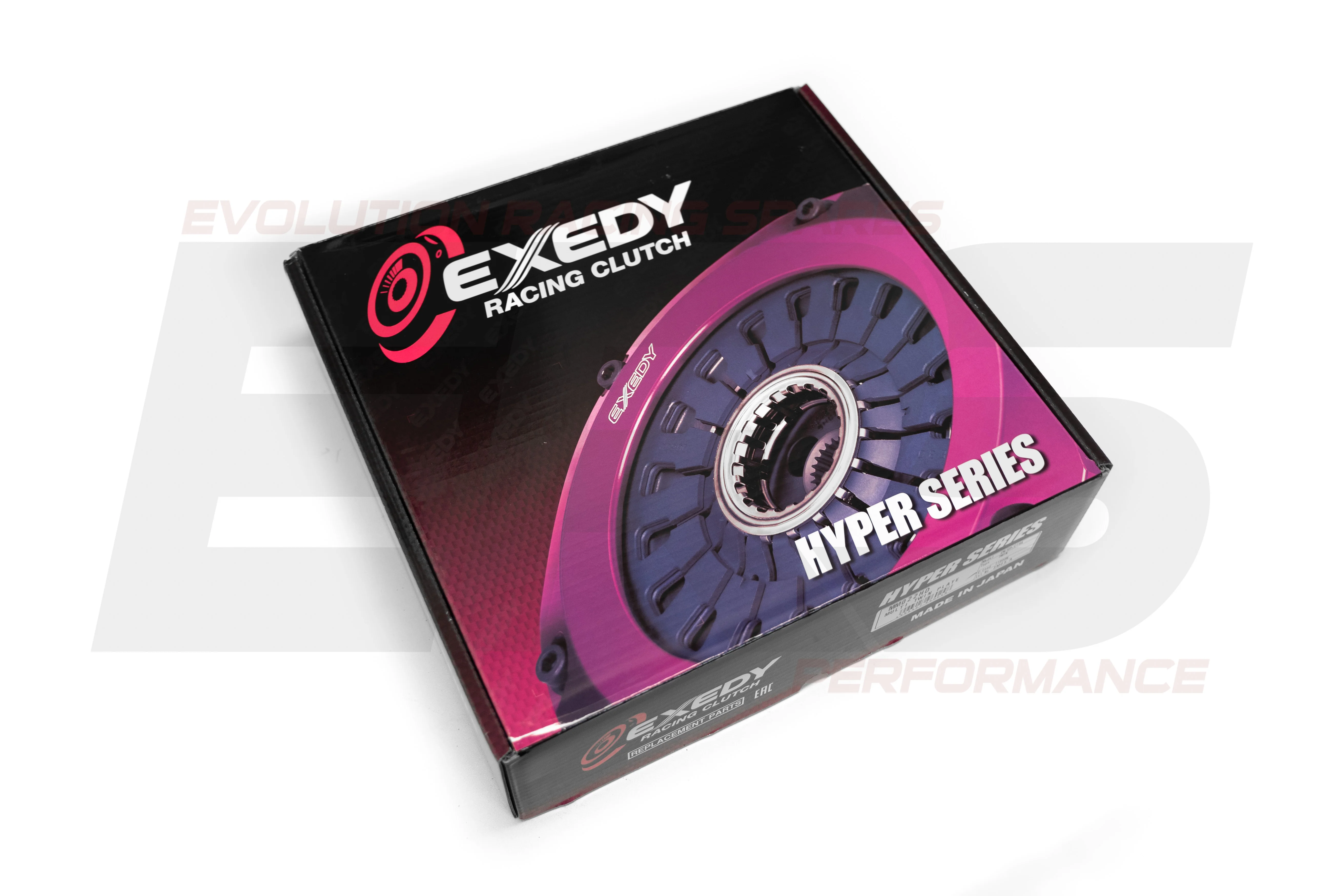

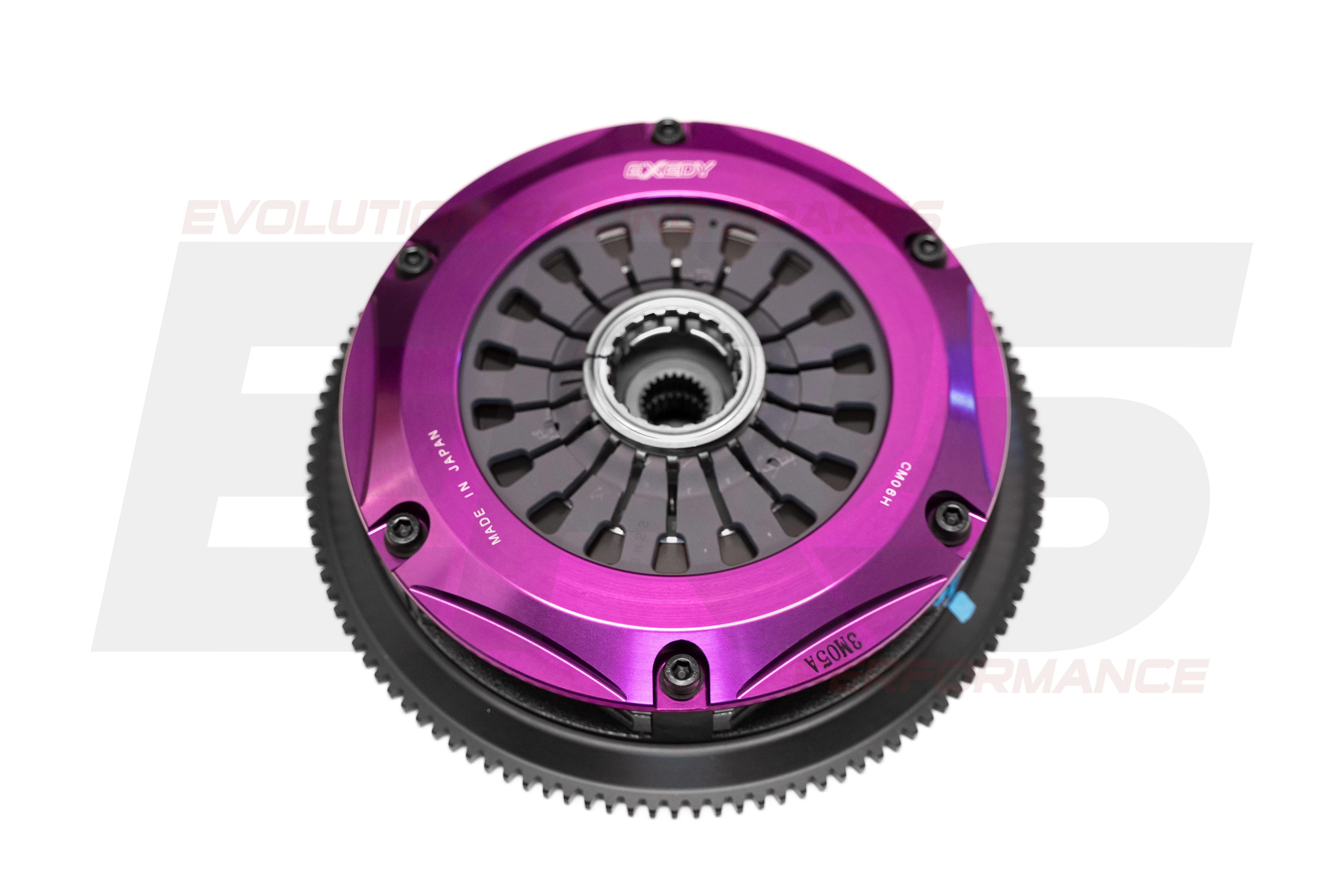

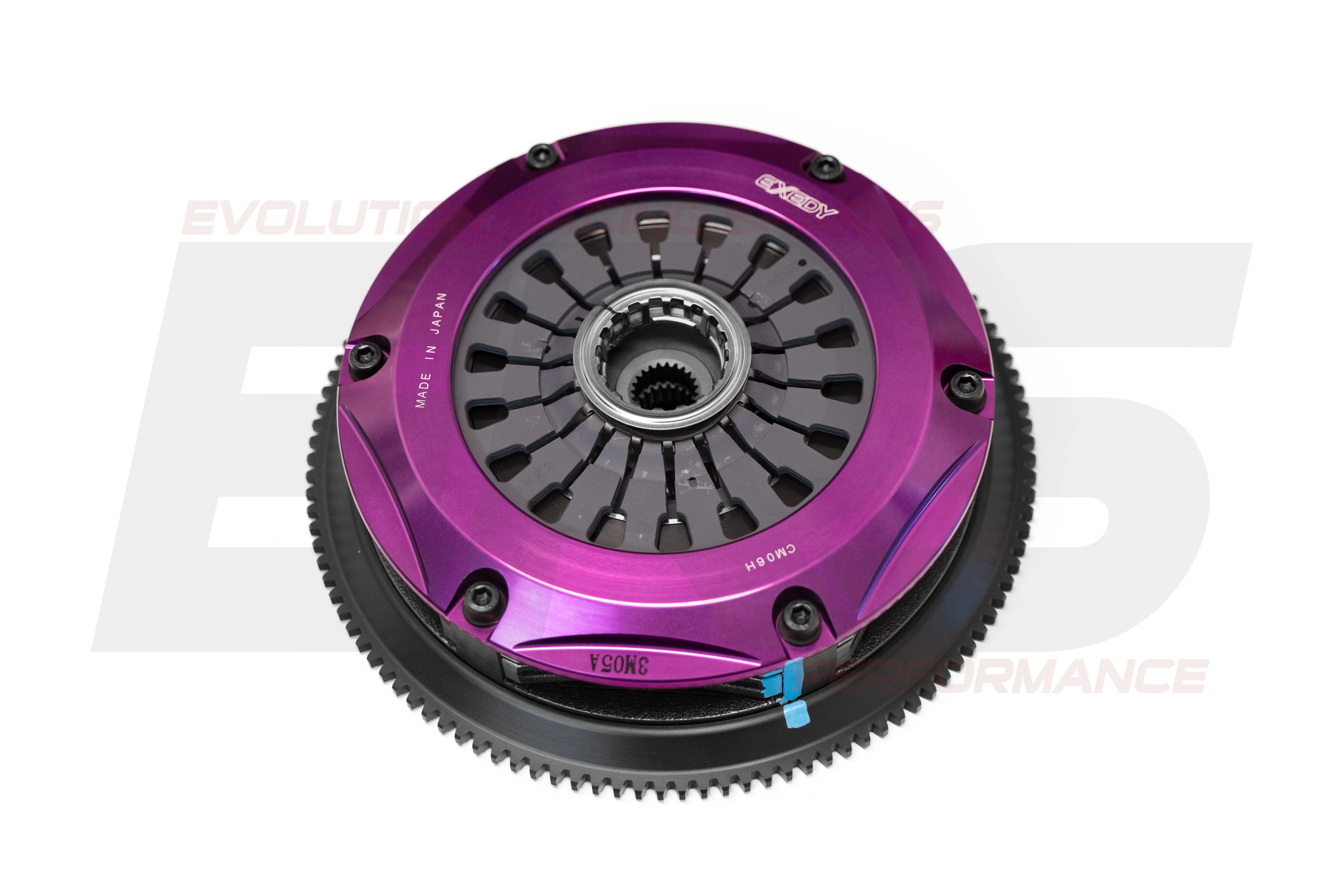

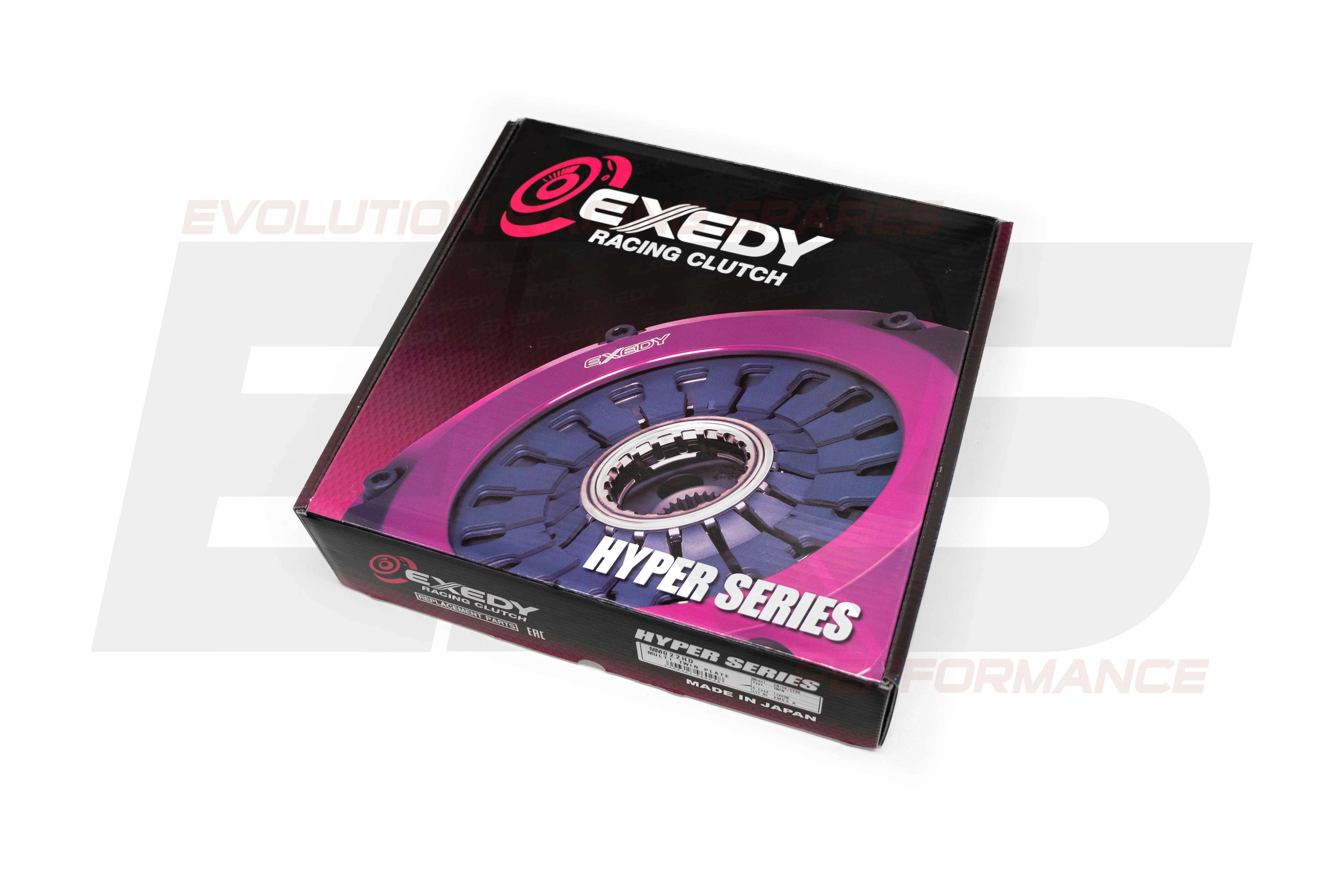

EXEDY Twin Plate Clutch Kit SD for Mitsubishi Evo 4-9 (Cerametallic)

The EXEDY Twin Cerametallic Clutch Kit for the Evo 4-9 models is a great clutch if you are both a drag racer and drive your car on the street. The pedal is firm and easy to engage making it one of the most recommended street/race clutches out there! The SD version is good to 450 WHP and the HD is designed to handle more launches and good to 550.

Vehicle Fitment - FITS BOTH 5 AND 6 SPEED:
• 2001-2006 CT9A Evolution 7/8/9
• 1996-2001 CP9A CN9A Evo 4/5/6

Why do I need a twin plate clutch?
Multi plate clutch kits (Twin & Triple Disc) simply put have more than one clutch disc. The stock clutch comes with one disc and by having two or three discs, you essentially double or triple the surface area to be clamped. If you are like most Evo owners, you have probably doubled or tripled your power... so you need to compensate with a more powerful clutch. There will also be intermediate plates between the discs and especially with the Triple kits, when you push in the clutch pedal, you'll hear those plates rattling around free. That's totally normal and fun to mess with your friends.

Features:
• Street, Drag, Road and Rally
• Lightweight Chromoly Steel Flywheel

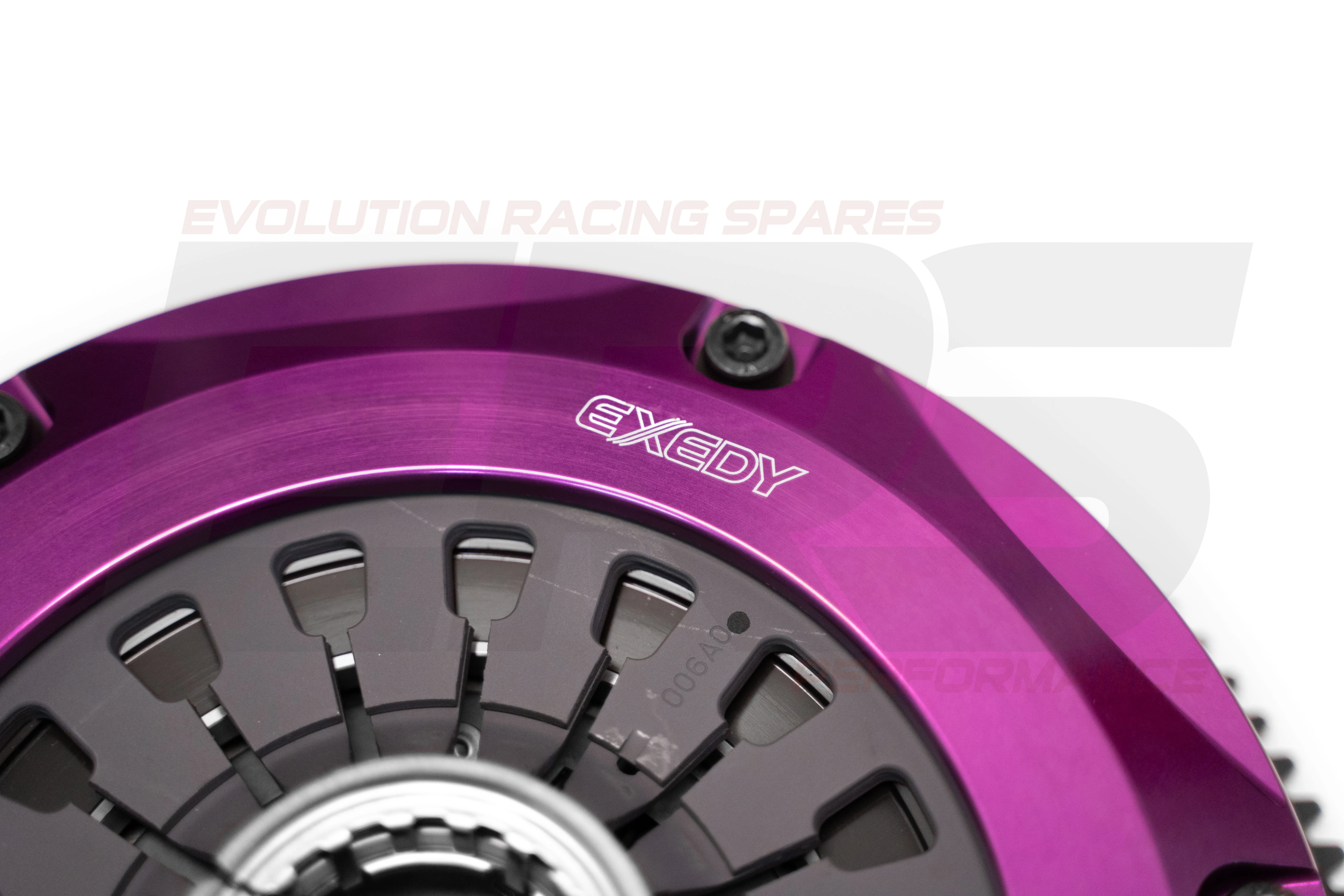

• Purple Anodized Forged Aluminum Clutch Cover
• Pull-Type Design
• Cerametallic Discs
• SD rated for 450 WHP
• HD rated for 550 WHP

MM022SD Evo 4-9 Clutch Kit

Notes	SD Hyper Twin Cerametallic Clutch Sprung Center Disc Pull Type Cover Uses TOB MBAK100
Clamp Load	2652
Disc Diameter (Inches)	7.9
Disc Diameter (Millimeters)	200
Kit Contents	CM06H, PP02, IM01, DM13DA, DM13DB, FR01, FM12, BS05, BS01, PR01 and Alignment Tool
Spline Count	23
Spline Size (Inches)	1-1/16
Spline Size (Millimeters)	26.2
Torque Capacity (ft/lbs.)	615



Install Notes:
• Flywheel to Crank Bolt (ft-lb): 99
• Pressure Plate Assembly to Flywheel (ft-lb): 23
