Haltech - IC-7 Colour Display Dash

Product image 1
Product image 2
Product image 3
Product image 4

Haltech - IC-7 Colour Display Dash

Haltech IC-7

With a crisp clear and full colour display the all new Haltech IC7 Display Dash lets you see things in a brand new way. HT-067010.

If you're after a Mako Motorsport Dash Mount - Click Here to view the collection.

Designed and manufactured in Australia with motoring enthusiasts in mind the IC-7 offers market-leading features in a unique state-of-the-art package.

Featuring auto-dimming ambient light reactive brightness and a user-programmable multi-colour shift light bar the iC-7 connects directly to all current Haltech ECUs via a CAN network.
  • Ideal replacement for individual analogue gauge clusters.
  • Easy to install and configure.
  • User adjustable brightness control with automatic dimming.
  • User configurable channels units and alarms.
  • 14 programmable seven colour shift light LEDs.
  • Controlled via easily accessible face-mounted control buttons.
  • Configuration via Haltech iC-7 software and USB cable.
Haltech - IC-7 Colour Display Dash

Download the IC-7 Quick Start Guide Here

Part Number: HT-067010

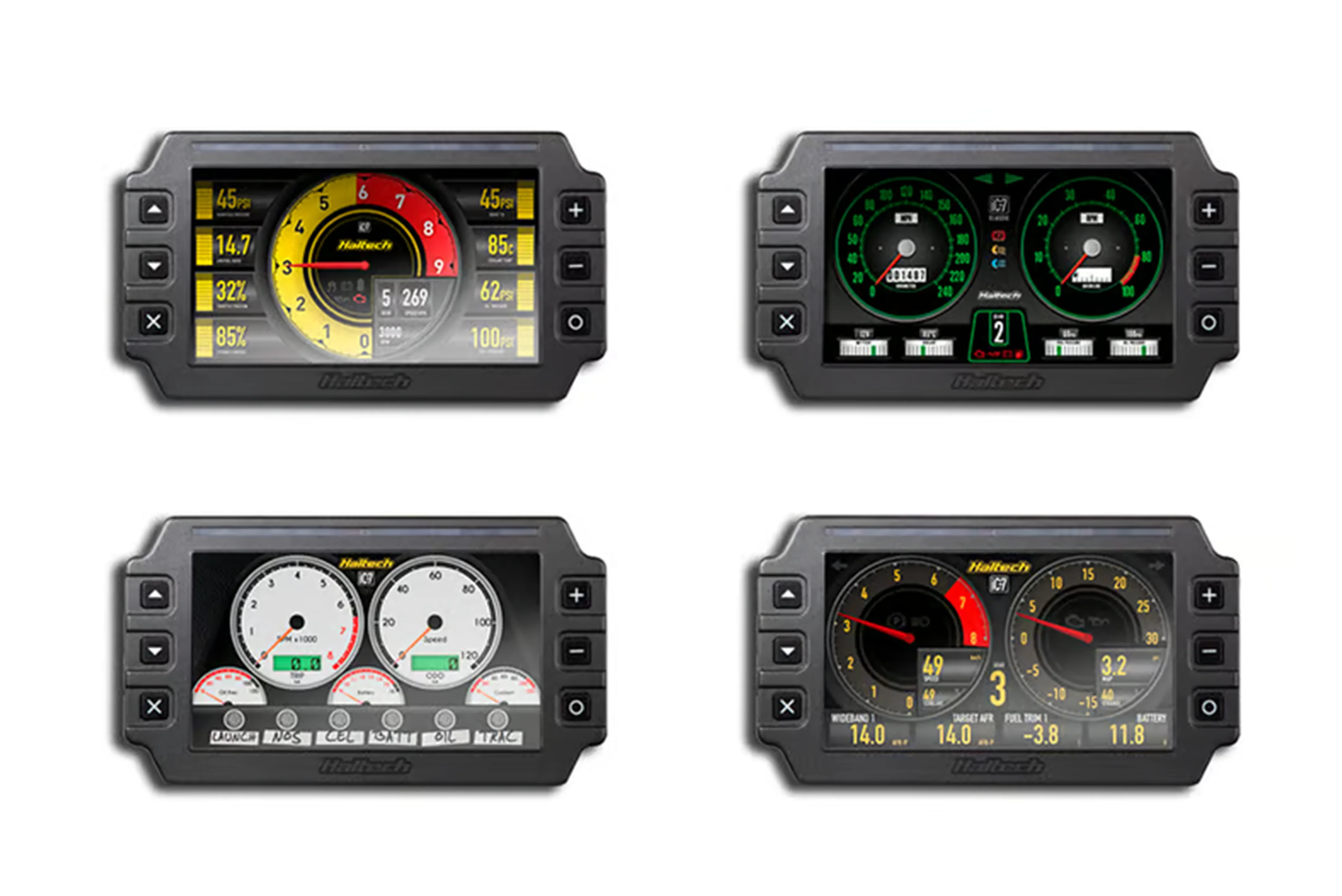

Screen: Full colour 7" TFT display
Outside Dimensions: 217 x 122mm (8.5³ x 4.8³)
Compatible with: All currrent Haltech ECUs via CAN.

What's in the box:

  •  Haltech iC-7 Display Dash
  • 34 Pin main connector harness
  • DTM-4 to DTM-4 CAN extension cable
  • USB to M5 right angle cable
  • USB Cable
  • Mounting Screws
  • USB flash drive with iC-7 Software
  • Quick Start Guide
  • Haltech stickers and a fabric keyring tag

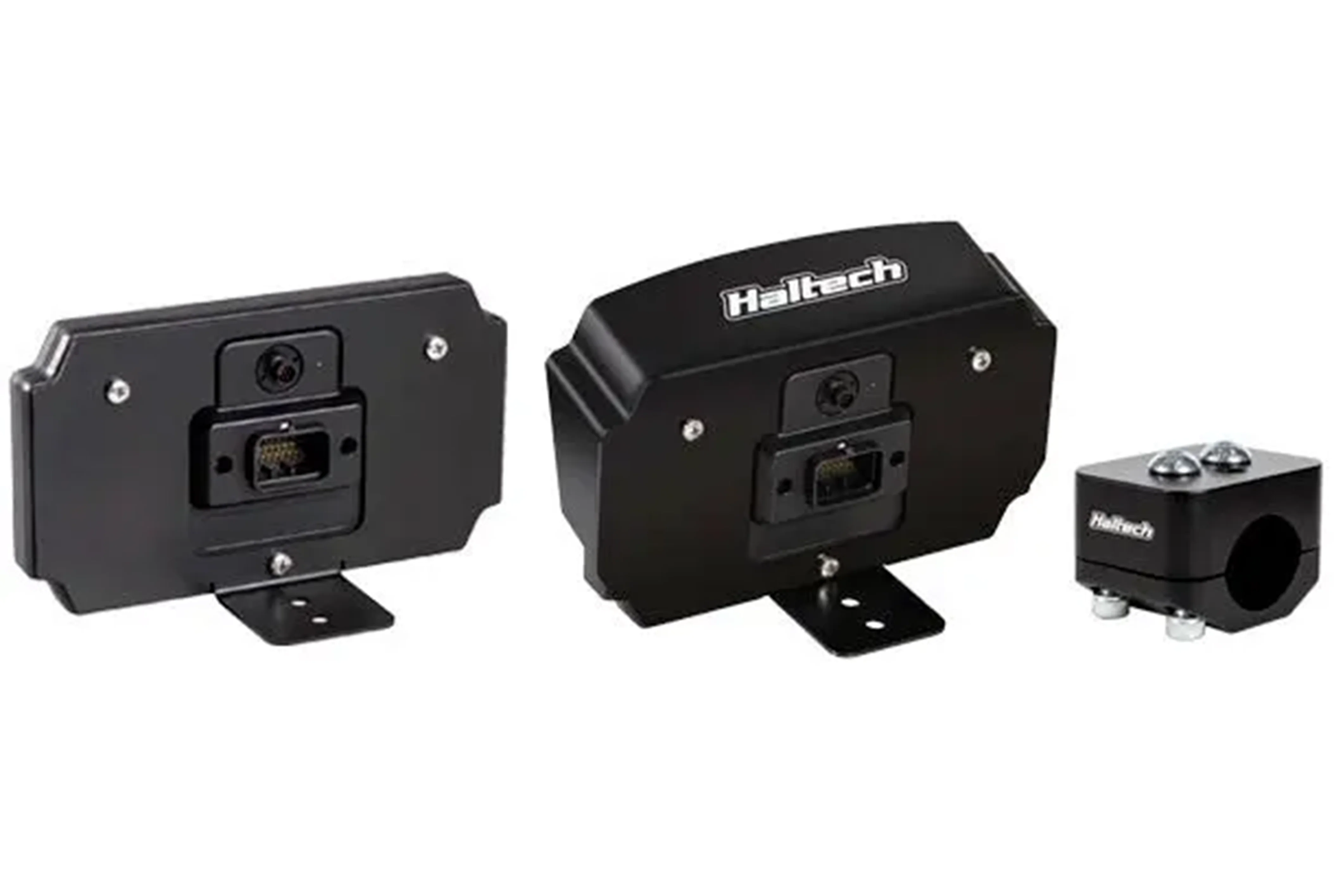

    Optional Mounting Accessories

    Universal Mounting Bracket

    Mounting Bracket with Integrated Visor

    Billet Bar Mount

    Haltech IC-7 Software

    The IC-7 is configured using brand new intuitive software. With this software you can change various aspects of the dash behaviour including:

    • Ranges of channels. Eg. the maximum RPM on a needle style tacho or a bar graph.
    • Red ranges for channels. Eg. when a numeric display changes to the red the red zone on a tacho.
    • Display units. Eg. metric or imperial Lambda or AFR.
    • The channel is to be displayed at each location on the screen.
    • The connection method. Eg. Haltech CAN or OBD-II.
    • Shift light RPM points and colours.
    • Alarm thresholds colour for on-screen display and shift lights manual or auto reset methods.
    "
