Haltech - Nexus S3 Plug 'n' Play Adapter Harness Kit - Mitsubishi EVO 4-8 & 2G

Product image 1
Product image 2

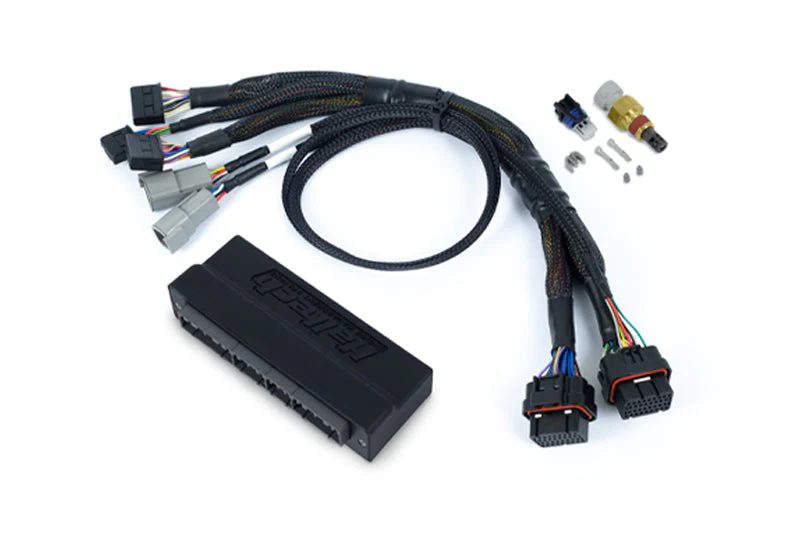

Product image 3
Product image 4

Haltech - Nexus S3 Plug 'n' Play Adapter Harness Kit - Mitsubishi EVO 4-8 & 2G

Haltech - Nexus S3 Plug 'n' Play Adapter Harness Kit - Mitsubishi EVO 4-8 & 2G

Suits: Plug 'n' Play replacement of the factory ECU for Mitsubishi EVO 4-8 (5 Speed)(All Regions) EVO 8 MR (USDM Only) Eclipse 2G Turbo (USDM) Manual transmissions only.

Includes: Nexus S3 ECU Injection molded plastic plug 'n' play adaptor harness M14 x 1.5 air temp sensor with matching plug and pins auxiliary I/O 16 Pin Tyco plug and pins.

Notes: Manual transmission only.

Haltech's Nexus S3 is the successor to the acclaimed Elite 2500 offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.
  • 8 x peak/hold injector drivers (can be used as low side drive outputs)
  • 8 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs PWM capable (DPOs)
  • 4 x push-pull / half bridge outputs (8A PWM capable) eg for electronic throttle
  • 1 x ECR output
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs zero crossing or adjustable thresholds - cam sensor inputs frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination
If you are using a factory harness and are after an easy ECU upgrade take a look at Haltech Plug 'n' Play Adapter Kits. These adapters plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.
  • A simple Haltech Plug 'n' Play product that allows you to be up and running in just a few hours.
  • The quick start guide will walk you through installation of the Haltech Plug 'n' Play adapter into your vehicle.



$2,440.28

Original: $8,134.28

-70%
Haltech - Nexus S3 Plug 'n' Play Adapter Harness Kit - Mitsubishi EVO 4-8 & 2G—

$8,134.28

$2,440.28

Product Information

Shipping & Returns

Description

Haltech - Nexus S3 Plug 'n' Play Adapter Harness Kit - Mitsubishi EVO 4-8 & 2G

Suits: Plug 'n' Play replacement of the factory ECU for Mitsubishi EVO 4-8 (5 Speed)(All Regions) EVO 8 MR (USDM Only) Eclipse 2G Turbo (USDM) Manual transmissions only.

Includes: Nexus S3 ECU Injection molded plastic plug 'n' play adaptor harness M14 x 1.5 air temp sensor with matching plug and pins auxiliary I/O 16 Pin Tyco plug and pins.

Notes: Manual transmission only.

Haltech's Nexus S3 is the successor to the acclaimed Elite 2500 offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.
  • 8 x peak/hold injector drivers (can be used as low side drive outputs)
  • 8 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs PWM capable (DPOs)
  • 4 x push-pull / half bridge outputs (8A PWM capable) eg for electronic throttle
  • 1 x ECR output
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs zero crossing or adjustable thresholds - cam sensor inputs frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination
If you are using a factory harness and are after an easy ECU upgrade take a look at Haltech Plug 'n' Play Adapter Kits. These adapters plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.
  • A simple Haltech Plug 'n' Play product that allows you to be up and running in just a few hours.
  • The quick start guide will walk you through installation of the Haltech Plug 'n' Play adapter into your vehicle.
