Haltech - uC-10 Digital Dash

Haltech - uC-10 Digital Dash

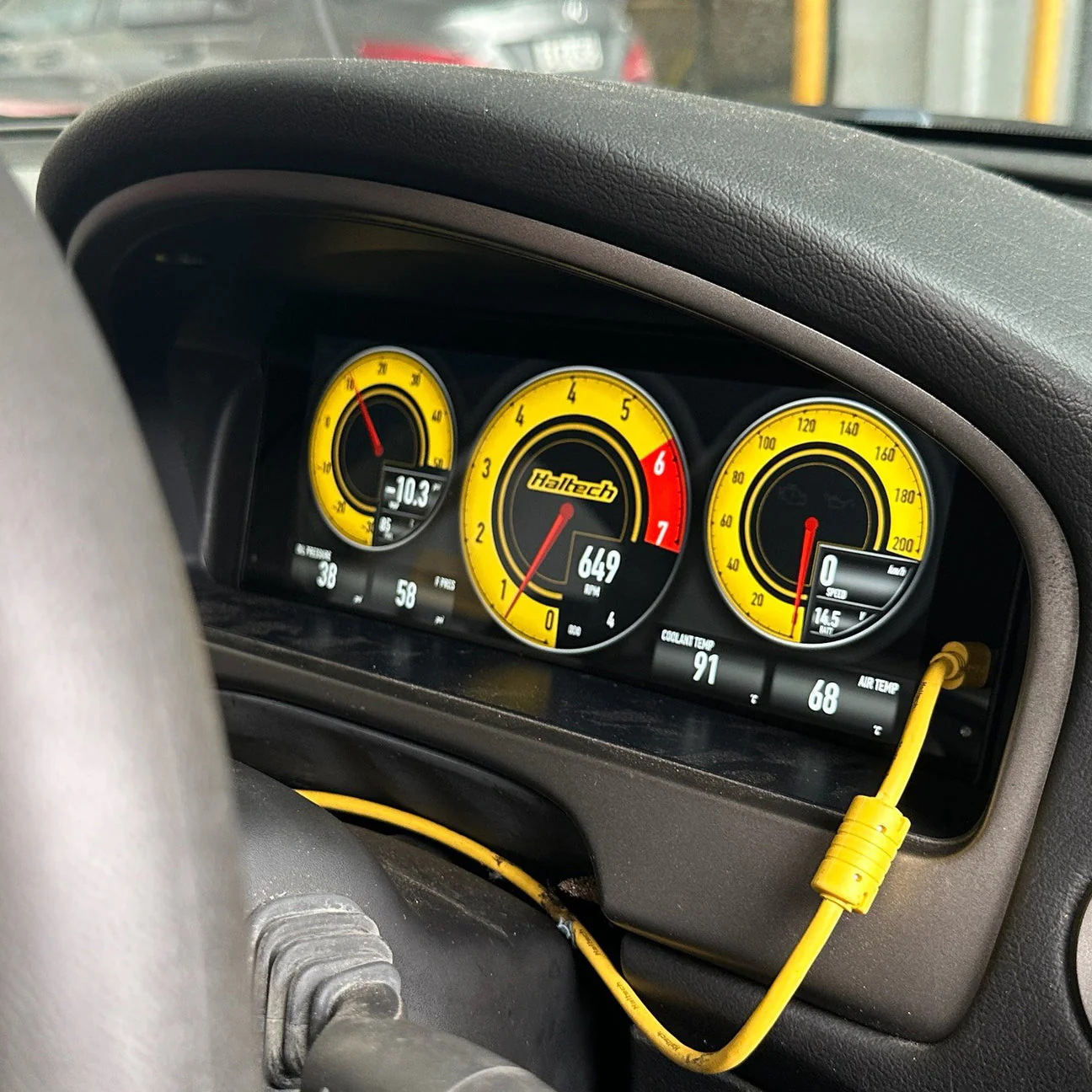

With a crisp clear and full-color display the all-new Haltech uC10 Display Dash is now available for pre-order. The uC-10 is compatible with Haltech CAN OBD2 and selected aftermarket ECU brands. It can also be wired in as a complete stand-alone unit. This versatility ensures that it can seamlessly integrate into a wide range of vehicles and setups. The uC-10 offers plenty of scope for sensors and other inputs in a stand-alone configuration or for use as an I/O expander in a Haltech environment.

  • Full-colour optically-bonded TFT screen
  • 70° minimum viewing angle (vertical and horizontal)
  • 1280 x 480 resolution 600+ lumens
  • IP64 (Dust-tight and protected against water splashes)
  • 6-digit odometer
  • 512MB of on-board looped data logging
  • NSP compatible
  • 10 x user configurable AVIP's
  • 4 x user configurable DPO's
  • 4 x user configurable SPI's
  • 1 x dedicated Tacho Input
  • 1 x dedicated alternator excite
  • 2 x Ambient light sensors

Suits: All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following aftermarket ECU brands: Link MaxxECU Microtech MoTeC M1 series MoTeC hundred series- (M400600800 gold box ECUs) Syvecs.

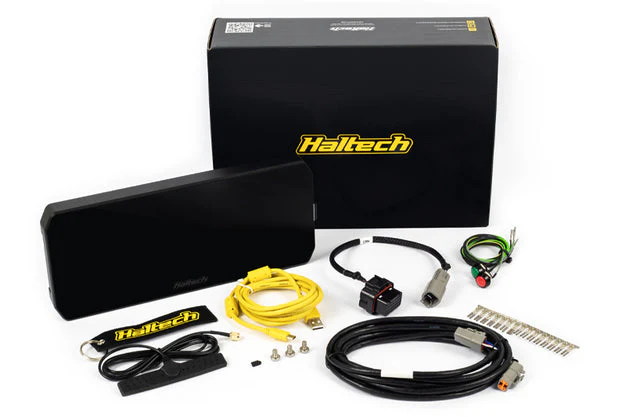

Includes: 1 x Haltech uC-10 Display Dash 1 x 34P connector - same as HT-131001 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in) 1 x USB-C cable 3 x M5 x 8mm mounting screws 2 x Momentary switches pre-terminated 800mm 22AWG Cable 1 x Glass Mount WiFi antenna 1 x Haltech fabric keytag Haltech stickers

"
$69,761.33

Original: $232,537.78

-70%
Haltech - uC-10 Digital Dash—

$232,537.78

$69,761.33

Product Information

Shipping & Returns

Description

Haltech - uC-10 Digital Dash

With a crisp clear and full-color display the all-new Haltech uC10 Display Dash is now available for pre-order. The uC-10 is compatible with Haltech CAN OBD2 and selected aftermarket ECU brands. It can also be wired in as a complete stand-alone unit. This versatility ensures that it can seamlessly integrate into a wide range of vehicles and setups. The uC-10 offers plenty of scope for sensors and other inputs in a stand-alone configuration or for use as an I/O expander in a Haltech environment.

OBDII functionality requires adapter
cable HT-135003 (sold separately).
  • Full-colour optically-bonded TFT screen
  • 70° minimum viewing angle (vertical and horizontal)
  • 1280 x 480 resolution 600+ lumens
  • IP64 (Dust-tight and protected against water splashes)
  • 6-digit odometer
  • 512MB of on-board looped data logging
  • NSP compatible
  • 10 x user configurable AVIP's
  • 4 x user configurable DPO's
  • 4 x user configurable SPI's
  • 1 x dedicated Tacho Input
  • 1 x dedicated alternator excite
  • 2 x Ambient light sensors

Suits: All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following aftermarket ECU brands: Link MaxxECU Microtech MoTeC M1 series MoTeC hundred series- (M400600800 gold box ECUs) Syvecs.

Includes: 1 x Haltech uC-10 Display Dash 1 x 34P connector - same as HT-131001 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in) 1 x USB-C cable 3 x M5 x 8mm mounting screws 2 x Momentary switches pre-terminated 800mm 22AWG Cable 1 x Glass Mount WiFi antenna 1 x Haltech fabric keytag Haltech stickers

"
