HypeEX Forward Facing Tubular T4 Twin Scroll Evo 4-9 Exhaust Manifold

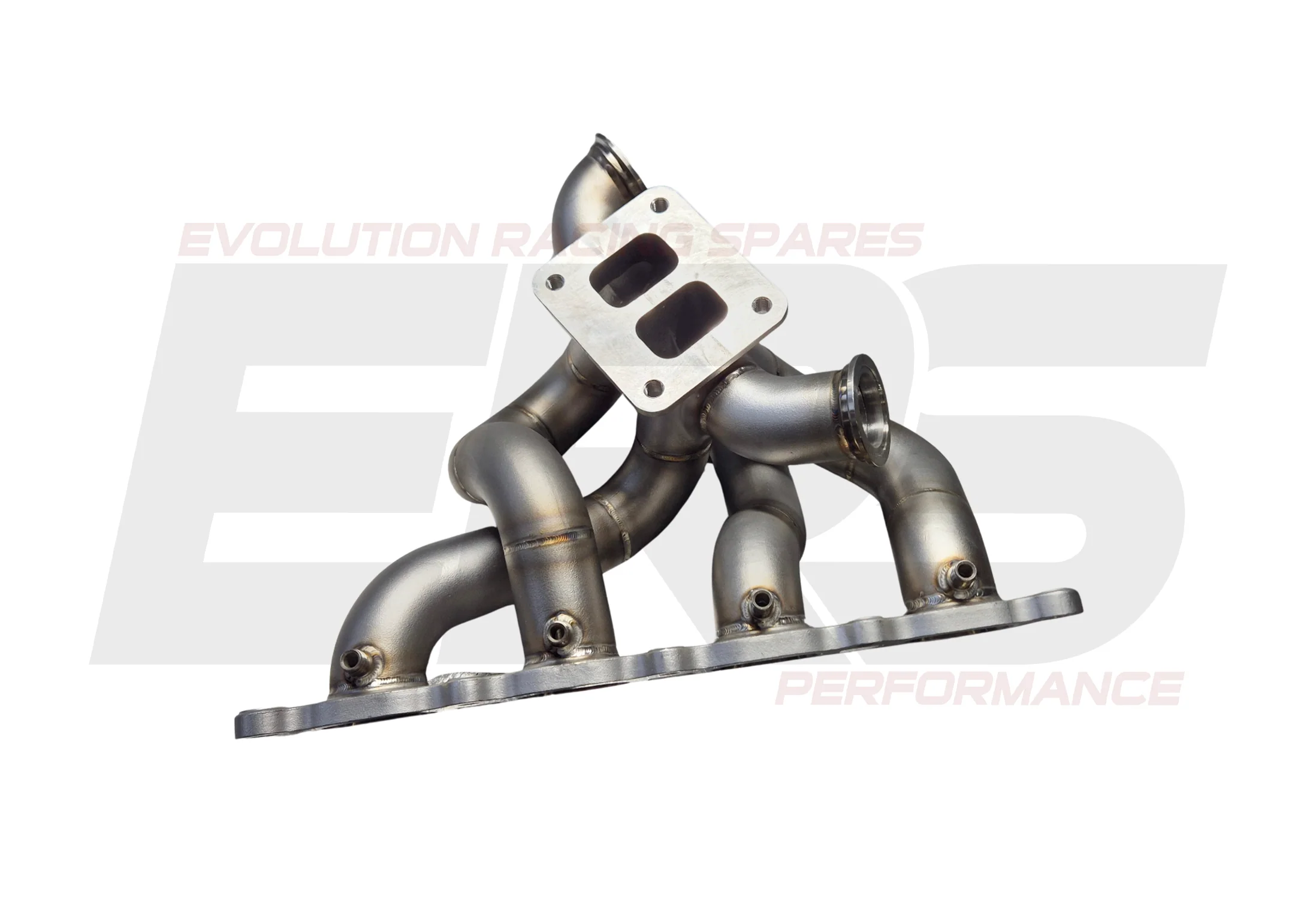

4G63 Hypex 347 Stainless T4 T/S Turbo Manifold

This T4 Twin scroll Hypex 347 Stainless Turbo Manifold is a precision-engineered exhaust solution for the Mitsubishi 4G63 platform, designed to accommodate large-frame turbochargers.

Constructed from high-grade 347 stainless steel, this manifold provides superior resistance to heat stress and fatigue cracking under high boost applications. All welds are TIG welded with full back purging, ensuring maximum penetration, strength, and a clean internal finish for uninterrupted exhaust gas flow.

The manifold geometry is designed to provide clearance for a large-diameter dump pipe. Seamless CNC transitions between the head flange, collector, and turbo flange minimize turbulence and promote efficient exhaust flow.

Originally developed and proven on the first Australian Evolution to break into the 8-second bracket on a street radial nearly a decade ago, this design has been refined for both reliability and performance in modern high-output 4G63 builds.

Technical Specifications:

• 347 Stainless Steel (Hypex)

• Precision TIG with full back purge

• CNC-matched head, turbo, and wastegate flanges

• Twin 40mm Wastegates

• Large-frame turbos (Garrett G45, Precision 8685, Turbosmart 7880, and equivalents)

• Compact layout to support large-diameter dump pipe

Key Features:

• Optimized flow and thermal stability under extreme boost pressure

• Precision alignment for consistent sealing and easy installation

• Engineered for long-term performance and reliability in high-power builds
