PureFab In-Bay Fuel Surge Tank for Mitsubishi Evo 7-9

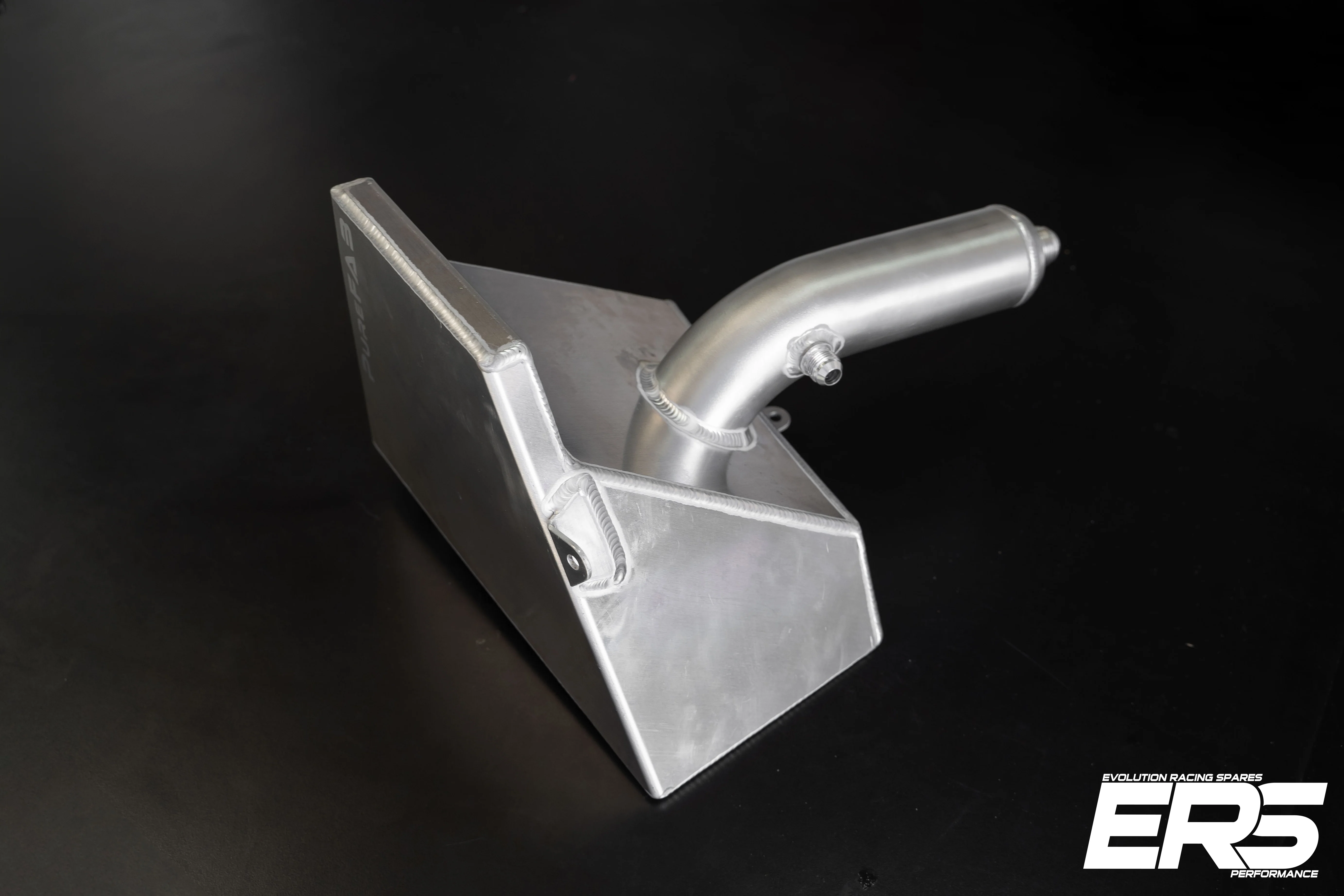

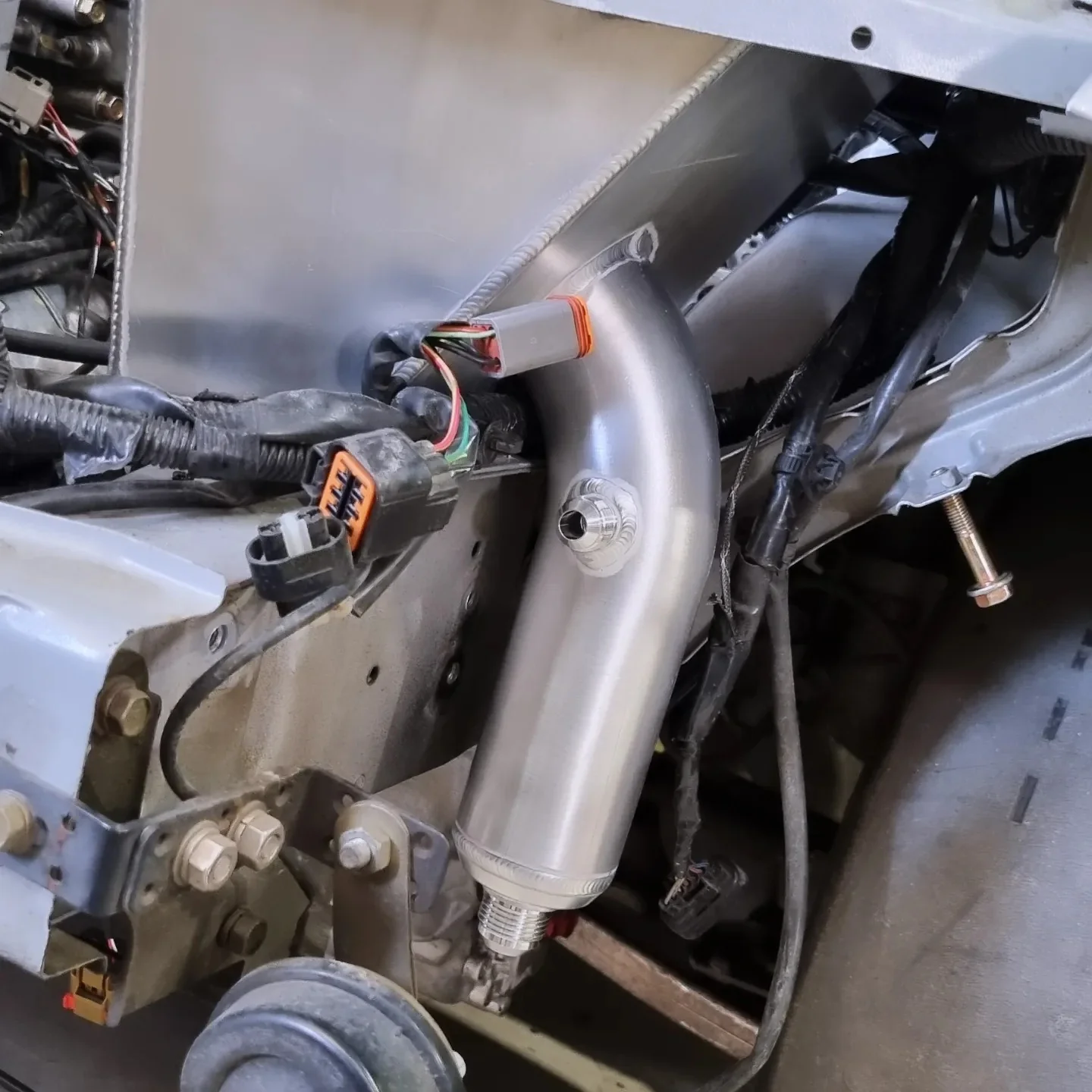

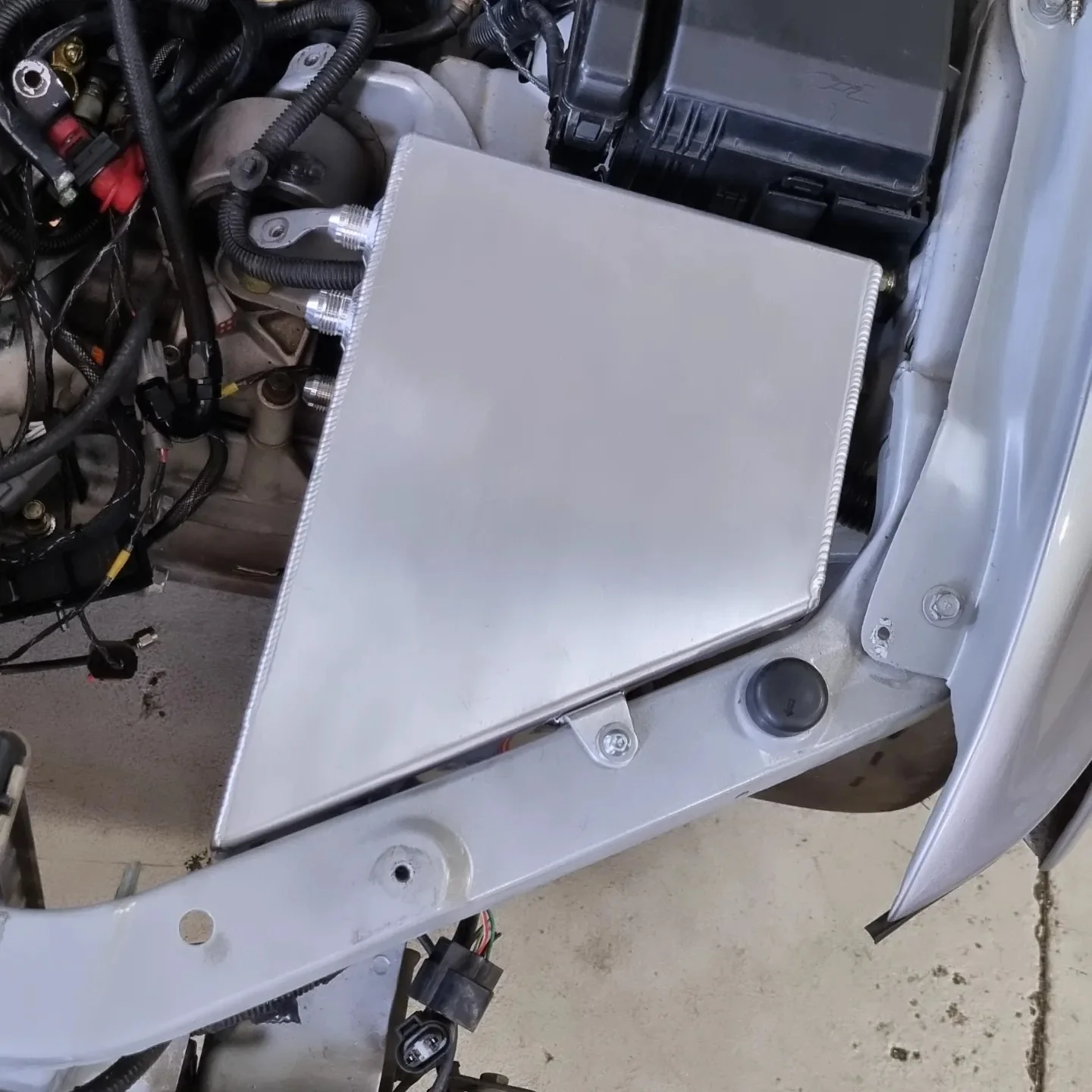

This fuel cell was developed using advanced 3D scanning and reverse-engineering of a precision fuel cell to suit mechanical fuel pump setups on EVO 7–9 models. The design incorporates a bottom-mounted drop tube with an integrated feed line that also functions as an internal baffle. Additional fittings are provided for a prime pump, rear tank feed and return, and fuel regulator integration.

Comprehensive plumbing instructions are supplied to ensure correct installation. Each fuel cell is CNC laser cut and folded before being precision TIG welded in-house. Every unit is pressure tested upon completion to ensure quality and reliability prior to dispatch.

Features:

• CAD designed

• CNC laser cut and folded

• Precision TIG welded in-house

• 3mm material construction
